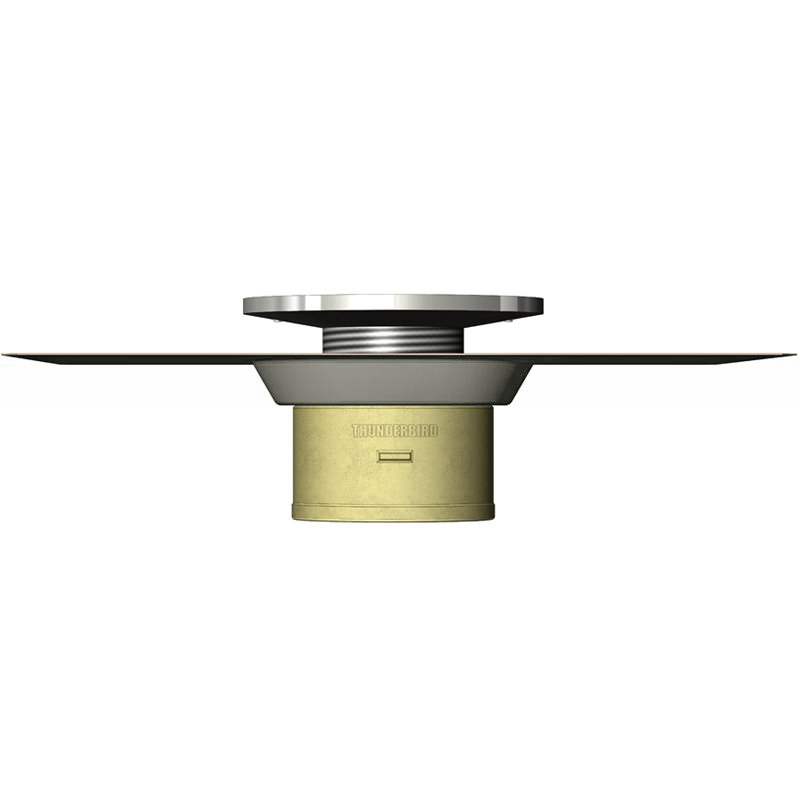

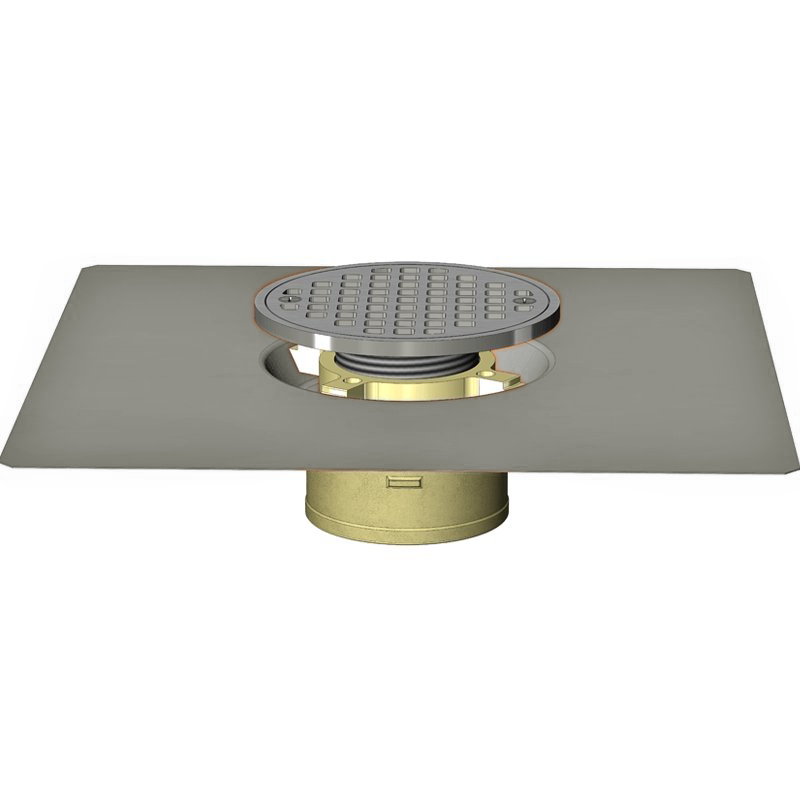

Adjustable bowl deck drain for tile and concrete applications. Manufactured in the USA by Thunderbird Products. Adjustable from .875"-2.25".
- Adjustable for Tile & Concrete Applications
- 26 gauge 316 grade stainless steel
- Available with optional 90 degree brass fitting
- 2 or 3" Bronze No Hub Fitting
- All 2" thread grates work with this item.
- Grate is not included with this item

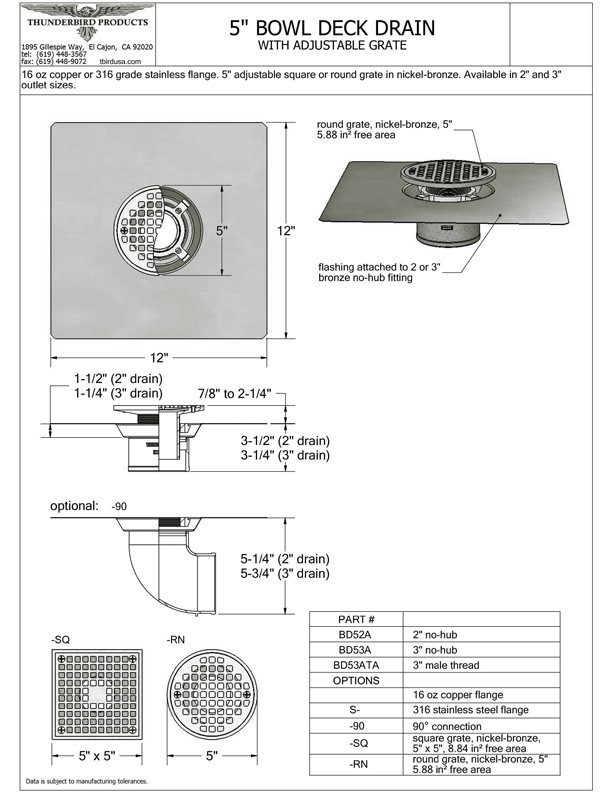

| Product Drawing | Copper 5" Adjustable Bowl Deck Drain (No Grate) PDF Drawing Copper 5" Adjustable Bowl Deck Drain (No Grate) CAD Drawing  |
|---|---|
| Compliance |
*NOT ALL MODELS APPROVED |
| BD52ARN | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" Round Nickel Bronze Grate |
| BD52ARN90 | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" Round Nickel Bronze Grate w/ 90 Degree Copper Elbow |
| BD52ARNCG | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" Round Chrome Grate |
| BD52ARN90CG | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" Round Chrome Grate w/ 90 Degree Copper Elbow |
| BD52ARNORB | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" Round Oil Rubbed Bronze Grate |
| BD52ASQ | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Nickel Bronze Grate |
| BD52ASQ90 | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Nickel Bronze Grate w/ 90 Degree Copper Elbow |
| BD52ASQCG | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Chrome Grate |
| BD52ASQ90CG | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Chrome Grate w/ 90 Degree Copper Elbow |
| BD52ASQORB | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Oil Rubbed Bronze Grate |
| BD52ASQ90ORB | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Oil Rubbed Bronze Grate w/ 90 Degree Copper Elbow |
| BD52ASQTG | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Tile Insert Grate |
| BD52ASQTG90 | 2" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Tile Insert Grate w/ 90 Degree Copper Elbow |
| BD53ARN | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" Round Nickel Bronze Grate |
| BD53ARN90 | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" Nickel Round Bronze Grate w/ 90 Degree Copper Elbow |
| BD53ARNCG | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" Round Chrome Grate |
| BD53ARN90CG | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" Round Chrome Grate w/ 90 Degree Copper Elbow |
| BD53ARNORB | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" Round Oil Rubbed Bronze Grate |
| BD53ARN90ORB | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" Round Oil Rubbed Bronze Grate w/ 90 Degree Copper Elbow |
| BD53ASQ | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Nickel Bronze Grate |
| BD53ASQ90 | 3" No-Hub Adjustable Bowl Deck Drain w/ 5" x 5" Square Nickel Bronze Grate w/ 90 Degree Copper Elbow |
| BD53ASQCG | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Chrome Grate |
| BD53ASQ90CG | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Chrome Grate w/ 90 Degree Copper Elbow |
| BD53ASQORB | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Oil Rubbed Bronze Grate |
| BD53ASQ90ORB | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Oil Rubbed Bronze Grate w/ 90 Degree Copper Elbow |
| BD53ASQTG | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Tile Insert Grate |
| BD53A90SQTG | 3" No-Hub Copper Adjustable Bowl Deck Drain w/ 5" x 5" Square Tile Insert Grate w/ 90 Degree Copper Elbow |
