The Marine Grade Linear Thin Membrane Drain comes in a variety of sizes from 24" - 60" in length. It has a drop-in, 316 Marine Grade stainless steel grate for easy cleaning and is great for showers, floor drains, & other drain assemblies. The Marine Grade Linear Thin Membrane Drain is an ICC-ES Listed Product.
- Designed for linear shower drains in bathroom or deck applications
- Comes with Drain Flashing, Trench, Grate, & Filter Basket*
- Available in 24", 30", 36", 48", & 60" lengths
- Made of 316 Marine Grade Stainless Steel
- 2" Outlet in Center of Trench
- ICC-ES Listed Product
100% Made in the USA

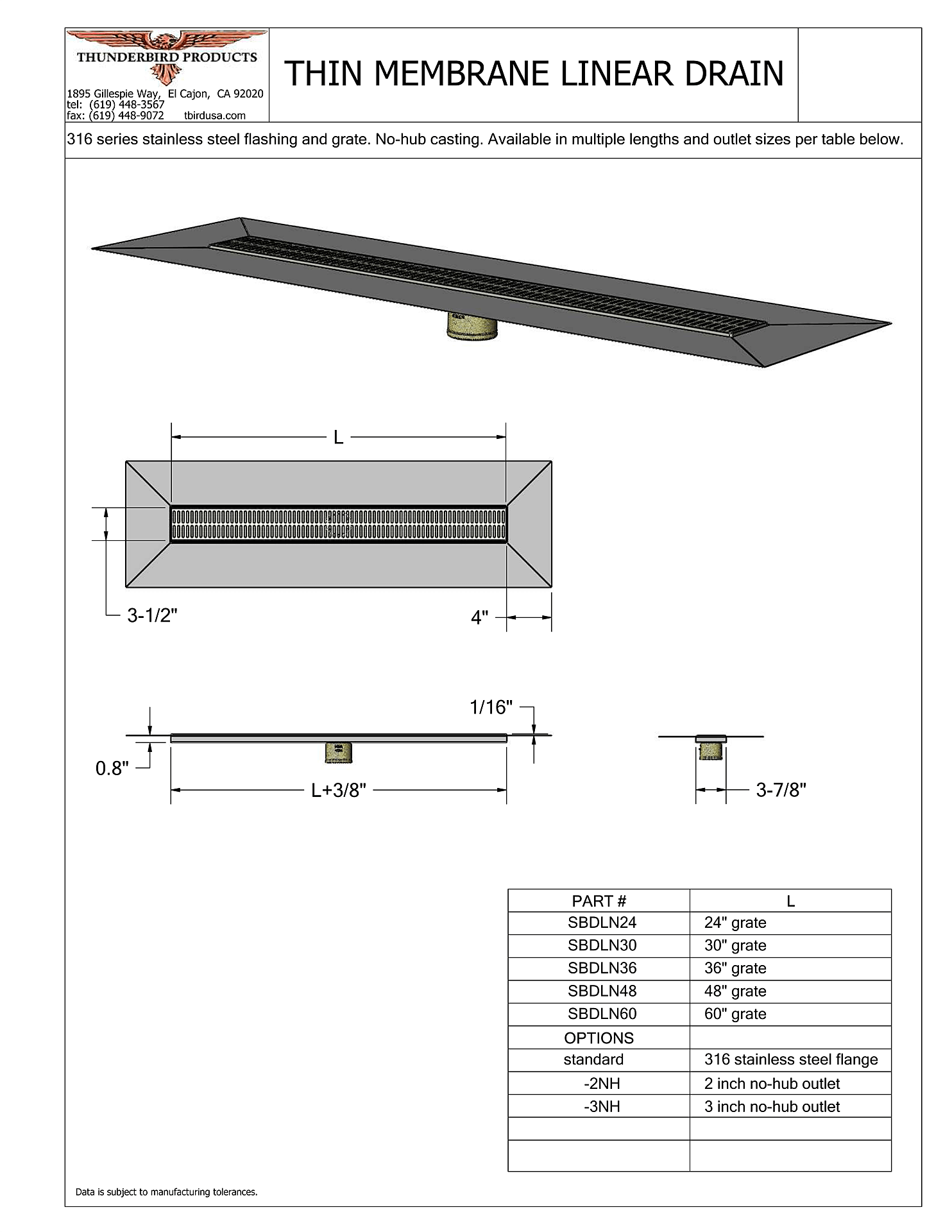

| Product Drawings | Marine Grade 316 Stainless Steel Linear Thin Membrane Drain PDF Drawing |
|---|---|
| Compliance |  |
| SBDLN24 | 24" Marine Grade 316 Stainless Steel Linear Thin Membrane Drain |
| SBDLN30 | 30" Marine Grade 316 Stainless Steel Linear Thin Membrane Drain |
| SBDLN36 | 36" Marine Grade 316 Stainless Steel Linear Thin Membrane Drain |
| SBDLN48 | 48" Marine Grade 316 Stainless Steel Linear Thin Membrane Drain |
| SBDLN60 | 60" Marine Grade 316 Stainless Steel Linear Thin Membrane Drain |
